PUMP CONTROLLERS

SC101, DC101, DC201, QC101

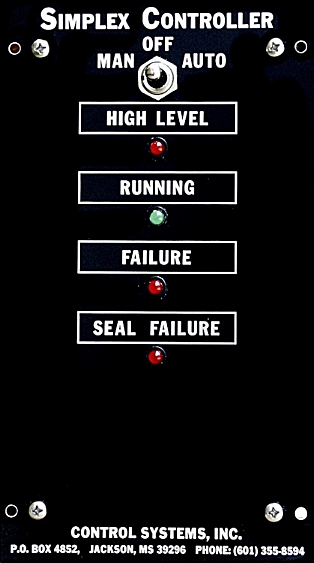

SC101E Simplex Pump Controller Features:

Manual-Off-Automatic Selector Switch
Running, Failure, and Seal Failure LED pilot lights
High Level Input and LED pilot light
Flashing Common Alarm Light output
Common Alarm Relay output
Pump failure and Seal Failure delays
Power On and Pump Start Delays
Short-Cycle delay
Optional repeat-cycle timer
Optional 7-day timer with LCD display (shown)
Lamp Test Input
UL recognized for use in Industrial Control Panels

DC101F Duplex Pump Controller Features:

Manual-Off-Automatic Selector Switches
Optically Isolated digital inputs
Lead Pump Selector Switch
Automatic Pump Alternation
Stagger Start and Stop
Alternation on Pump Failure
Alternation on Seal Failure
Lag Stop on Lead Start Level option
High and Low Water Alarms
Lag Start if Lead fails
Optional Float-Test Interface board
Optional Alarm Telemetry module
UL recognized for Industrial Control Panels

DC201 Duplex Pump Controller
with Lift Station Analyzer

All the features of the DC101F
RTU communications to the SCADA CTU
Calculates station flow with SPLT
Reports the following to the SCADA system:
Selector switch position
Alarm status
Station flow
4 AI - wetwell level, two motor current, spare
2 Serial Ports - one RS232 and one RS485

QC101B Quadraplex Pump Controller Features:

Quadraplex or Triplex operation
Manual-Off-Automatic Selector Switches
Stop and Start levels for each pump
First-on / first-off or last-on / first-off operation
Stagger Start and Stop
Automatic pump alternation
Alternation on pump failure and seal failure
Running, Failure and Seal Failure LED pilot lights
Level Input and LED pilot lights on front panel
Maximum-Run timer
Flashing Common Alarm Light output
Common Alarm Relay output
Improper sequence alarm and reset pushbutton
Alarm Telemetry Module
UL recognized for use in Industrial Control Panels

LEVEL METER CONTROLLERS

MPCT6, MPCT12

MPCT6C Multipoint Current Trip Controller Features:

Six Point Level Controller
Four digit LCD Level Display
Isolated 4-20ma level input and output
Six control points with LED status indicators
Setpoints can energize on rising or falling level
All settings can be shown on display
Temperature mode available
Signal failure relay output with LED indicator
Auxiliary alarm relay output
Six SPDT dry contact relay outputs
Settings viewable on display
Keypad settings entry
Output test mode
Lamp Test Input
UL recognized for use in Industrial Control Panels

MPCT12C Multipoint Current Trip Controller Features:

Twelve Point Level Controllers
Four digit LCD Level Display
Isolated 4-20ma level input and output
Twelve control points with LED status indicators
Setpoints can energize on rising or falling level
All settings can be shown on display
Temperature mode available
Signal failure relay output with LED indicator
Auxiliary alarm relay output
Twelve SPDT dry contact relay outputs
Settings viewable on display
Keypad settings entry
Output test mode
Lamp Test Input
UL recognized for use in Industrial Control Panels

PROCESS/SPEED CONTROLLERS

FDC101, CFC101

FDC101 Frequency Drive Controller Features:

VFD speed pacing based on level and number of pumps running
3.5 digit LCD Level Display with adjustable range control
3.5 digit LCD Output Percent display
Isolated 4-20ma level input
LED setting status indicators
Four pump running digital inputs
Minimum and Maximum level settings for each stage
Pump up and Pump down operation
Setting viewable on display
Two or Four Isolated 4-20ma current outputs
Pushbutton settings
RS485 Modbus Communications
Lamp Test Input
UL recognized for use in Industrial Control Panels

CFC101 Chemical Feed Controller Features:

3.5 digit LED or LCD display
Six individual flow settings
Dry contact running inputs
Individual and Total flowrates are visible on the display
Two realy outputs - one constant and one proportional 4-20ma output
APOptional 4-20ma Chart Recorder outpus for each flowrate
Lamp Test Input
UL recognized for use in Industrial Control Panels

MOTOR MONITORS

MM101, CT420, 3CT485

MM101 Motor Monitor Features:

One 5-amp current transformer input
True RMS amperage reading on a 3.5 digit LCD display
6 digit, resettable LCD elapsed time meter
Tri-colored LED Status indicators
Running and High Amps settings with variable On/Off delays
Two relay outputs
Optional 4-20ma isolated current outputs
UL recognized for use in Industrial Control Panels

CT420 Dual CT to 4-20ma Out Converter Features:

Dual 5-Amp CT inputs
True RMS conversion
Two isolated outputs (4-20madc)
Power-on Status LED
Quick-Disconnect Terminals
Snaptrack or Backplate mounting

3CT485A 3-Phase Motor Monitor Features:

Three 5-amp current transformer inputs
True RMS conversion
RS485 serial communications via Modbus Protocol
Relay output for Motor Running status with On/Off delays
Multiple units may be connected together over RT485 lines
Eliminates need for many analog inputs into an RTU
Provides Out-of-Tolerance alarms for each phase
On-board settings for Running Percentage and Phase Tolerance
Phase LED status indicators
Quick Disconnect Terminals
Snap-Track or Backplate mounting
12vdc power

HYDROWATCH

The HydroWatch is designed to prevent water-logging or air-logging of the hydropneumatic tank under normal operating conditions. Water and air connections are made from the back of the HydroWatch panel to the tank, usually where the sight glass is located. The sight glass is now located inside the panel, visible through a viewing window, and completely protected from freezing weather. Probes are located inside the enclosure in a tube that is a physical extension of the tank. This tube is isolated with shut-off valves in the water and air lines, which facilitates servicing the system. Conducting service on the system no longer requires de-pressurizing the tank which causes customers to experience reduced pressure for several days waiting for the system to re-balance. The tube in the panel is de-pressurized for servicing and the customers don't experience any loss of pressure.

nema 4x enclosure

The Hydro Watch panel provides all of the controls required for your hydropneumatic tank systems within one factory built unit, housed in a NEMA 4X fiberglass enclosure. All sensors and control components are prewired. Level and pressure sensors are adjusted specifically for your system. The entire unit is then completely tested for proper operation prior to shipment.

self balancing system

The panel provides automatic pressure and level controls in a unique Self Balancing system. If the system water/air ratio becomes unbalanced due to power failure or other interruption of normal conditions, the Hydro Watch will automatically regulate to the preset values. The system includes automatic pressure control to start the pump(s) controlling liquid level in the tank. An automatic pressure sensor adjusts tank air pressure by adding air from an integral air compressor. Over pressure is controlled by the pressure sensor and electric solenoid. An electronic controller is provided to allow easy adjustment of pressure control points. The tank pressure and setpoints are viewable on an integral LCD (Liquid Crystal) display. Level control is achieved without probes in the tank. Automatic level controls start pumps at predetermined tank low level, should air pressure build in the tank.

Field Adjustable

Tank pressure is viewable on a pressure gauge and tank level is viewable from a level sight gauge, complete with anti-freezing thermostat and heater. Manual/Off/Auto switches are provided for pumps and air compressor. A Reservoir Low Level stop is provided for pumps. For flexibility, the system is field convertible from simplex to duplex operation.
